Direct rotor type steam flowmeter

•

ZW-LFX series Direct rotor type steam flowmeter Mainly used for measurement of saturated steam in th…

Productoverview:

ZW-LFX series Direct rotor type steam flowmeter Mainly used for measurement of saturated steam in the process of industrial production and the overheated steam flow, it can directly display the cumulative amount of actual steam quality of the scene, but also can realize the remote cumulative display, in the pipe steam pressure changes through simple pressure adjusting device can ensure accurate measurement, the advantages of wide measuring range, high precision, long service life, simple structure, reliable work, convenient operation, suitable for energy metering.

Second, working principle:

ZW-LFX series direct rotor type steam flow meter is mainly used to measure the industrial production process of saturated steam and overheated steam flow meter. The main section of fluid, damper and indicator three parts, is a kind of differential pressure principle is shunt - meter.

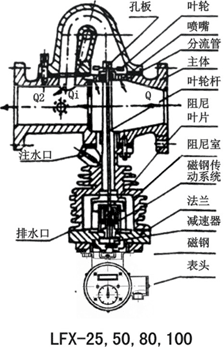

When the steam enters the body, because the throttling effect of orifice plate and nozzle, the inclined hole part of the steam enters the body through the shunt diversion pipeline, jet rotor impeller, a torque, the impeller shaft is arranged at the lower part of the damping damping blade, blade in the water filled radiator body rotation, the rotation by the damping effect of the impeller, kinetic energy this impeller can be effectively absorbed by the jet, the phase equilibrium in the impeller shaft braking torque torque and damping impeller speed of rotation. The steam enters the body is in proportion to shunt shunt in the pipeline, and the impeller speed and flow rate is proportional to size, so the impeller speed and through the full steam flow is proportional to the rotation of the impeller shaft, with the gear change to the appropriate speed, then the pointer through magnetic coupling to counter on the dial, can be directly read the numerical flow of steam. Equipped with pulse generator, we can realize the remote display. The specific figure:

Three, application:

ZW-LFX series direct rotor type steam flow meter is a measure of the steam instrument can accurately measure the superheated steam and saturated steam flow accumulation. Through the counter dial can be directly read through all the weight steam table, also the output pulse signal, the two meter remote connection.Applicable to the petroleum, chemical industry, light industry, metallurgy, textile, food, medicine and other units of measurement using steam steam flow.

Fourth, the main features:

1, flow measurement range, accurate measurement of saturated steam and overheated steam (superheat is less than 20 DEG C) flow.

2, in the pipeline installation of this flowmeter can easily change the flow range as long as the change of the nozzle or orifice.

3, can be directly read out the accumulated flow, but also can realize the remote display.

4, when the working pressure is changed, through the pressure adjusting device, can ensure accurate measurement.

5, simple design, reliable structure, convenient maintenance.

Fifth, technical parameters:

1, medium: saturated steam and overheated steam (superheat is less than or equal to 30 DEG C);

2, nominal diameter: DN25, DN50, DN80, DN100;

3, Zui high working temperature: 240 degrees;

4, the use of pressure range: 0.05 ~ 1.6MPa;

5, compensation mode: manual pressure compensation;

6, reading: reading;

7, installation: horizontal installation. Must be installed in a horizontal straight tube, the indicator must be in the pipeline under the straight pipe section length to meet the requirements (10DN 5DN). The other according to the steam must be the direction of the arrow into the shell body.

Six, installation and use:

1, flow meter must be installed in a horizontal straight line section, pipe line length shall not be less than the nominal diameter of 10DN before and after section of straight pipe line length should not be less than the nominal diameter of 5DN. The inner diameter of the pipe must be the same size as the nominal flow meter. Do not put the meter installed in the pipeline Zui low, flowmeter indicator must be perpendicular to the line below.

2, according to the steam flow to the meter shell protruding arrow direction, not the reverse. The user for convenient reading, need to change the direction of the dial, can unscrew the fastening indicator two M10 * 28 bolts, the indicator will rotate 90 degrees or 180 degrees, then bolt from the other two hole. But not the reverse toggle magnets, lest cause loosening of product failure.

3, the machine before installation, must be on both sides of the pipeline cleaning net, so as to avoid clogging dirt into the flowmeter body.

Before 4, two meter running, a water plug must open top chamber damping, the damping chamber filled with water after fastening, otherwise the rotor speed is too high will cause the damage and accumulation of errors.

After 5, all the preparatory work is completed, the valve to be opened before and after work, after the opening of the valve opening to the need. Do not turn on too fast, so as to avoid the rotor damaged by the sudden shock.

6, in the environment temperature is below zero to stop working, to prevent damp indoor water freezes, the water must be discharged from the outlet of the damping chamber. If the work in cold conditions to prevent freezing of water in damping, damping chamber outsourcing enough insulation layer, or filled with antifreeze in the damping chamber (water solution containing diethylene glycol 50%).

7, the dial reading: this instrument according to different diameter, orifice plate is provided with 10kg, 100kg two dial.Figure 3A shows the 10kg dial, its long pointer per week is 10kg, the length of needle clockwise rotation, as a ratio to carry 10:1, go a week long pointer, a short walk *. * short a week away, second STS move...... , by analogy, to fifth short walk after a week, the pointer are back to zero.

The DN25 instrument must use the calibration correction factor to correct values, both the readings on the calibration correction coefficient, the actual steam flow shows that the formula is: G=G '- lambda; G: (kg) G' actual flow table indicating the flow (kg): lambda: Specifies the correction coefficient. A value is obtained by calibration, marked on the nameplate factory.

8, pressure adjustment: to ensure the measurement accuracy in steam pressure changes, a pressure compensation adjustment mechanism in the indicator, the pressure adjustment of the dial indicator should be consistent with the steam pressure through the shell, if not, should be adjusted to the same. Adjustment method; open the cover (2), (5) the back nut loosen scale rod (4) circular dial (3) on the pressure indicator scale line alignment scale (1) on the corresponding pressure value (consistent with working pressure) and then tighten the back nut.

Seven, note the use and maintenance:

The use of 1 meter, before operation, must be filled with clean water to damp indoor. First the two injection screw (avoid cavity gas row not clean, water filled, and then to fill the interior damping) clean water. Otherwise, the instrument will lead to damage or reduce the instrument precision and life;

2 meter, stop running, must be damp indoor water from the outlet on the net, to prevent the winter ice water meter and prevent bad water corrosion of instrument;

3, flow meter in environmental temperature below 0 DEG C when used in the damping chamber water by adding antifreeze (appropriate damping liquid concentration for ethylene glycol solution of 50%);

4, the installation should be flowmeter before flushing clean, prevent dirt from entering the instrument with the instrument damage caused by steam. The steam flowmeter is put into operation, should gradually open the valve, do not suddenly open the valve, to avoid damage to parts;

5, put into use, should be based on the steam working pressure, adjust the compensation, the compensation scale value of working pressure is consistent with the actual work, to ensure the accuracy of flowmeter.

Eight, the rated flow table (unit: Kg/h )

Nine, nominal pressure and working temperature:

Ten, dimensions and installation:
One Size and shape

Two Installation mode:
This instrument has the advantages of convenient installation, the installation please pay attention to the following matters:
One And the center line flowmeter must be installed in the steam pipeline horizontal straight line, the meter inlet pipe length not less than 10DN The export side, straight length not less than 5DN .
Two And flowmeter before the operation, must be filled with water from the water inlet.
Three And when the flowmeter at ambient temperature Zero The use should pay attention to antifreeze, antifreeze should be used in the radiator into the water (containing about 50% Aqueous solution of diethylene glycol) to replace.

Eleven, the selection of encoding:

Give an example： ZW-LFX-50/2 Description: steam flow meter rotor, nominal diameter 50mm , Two The number of throttling element.

12, design selection and ordering information:

1, the use of steam should be saturated steam or superheated steam (micro superheat is less than 20 degrees);

2, in the range of nominal pressure within the range of approximate flow meter or common working flow;

3, if the actual diameter and caliber inconsistent, should transform pipeline, but must meet the requirements of straight pipe;

4, whether with remote instrumentation and models;

5, if there is no selection and installation experience, I can assist the selection unit.
